Features

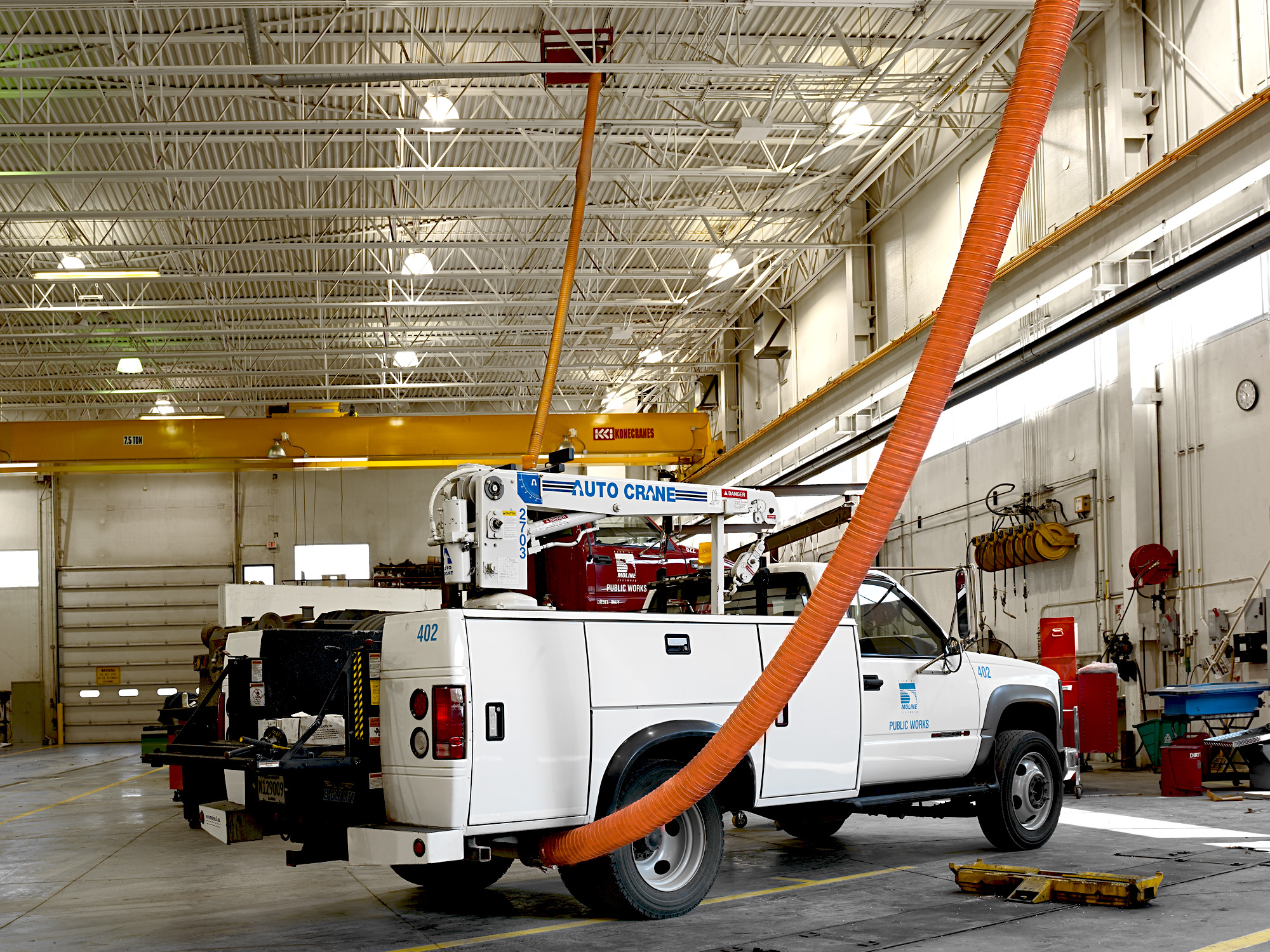

Motor Driven Hose Reel Extraction Systems
- 4”, 5”, 6”, 8” high‐temperature silicone Nomex or medium‐temperature polyester hose standard
- A variety of other hose options are available for special applications
- Direct Drive: 120-volt, 1-phase or 220-volt, 1-phase
- Tube Type: 120-volt, 1-phase
- Motor operated by spring rocker switch, by optional 2 or 4 button pendant, or radio remote control
- Hose available up to 40′ in length
- Three mounting options available: ceiling, sidewall or floor mount.
Options
- Direct Mount Switch to Reel for Fan On/Off
- RC Remote Control for Operation of Motor HR
- P2 2‐Button Pendulum Switch for Up/Down Control of Motor HR
- P4 4‐Button Pendulum Switch for Up/Down Control of Motor HR and On/Off Fan Control
- DMHR Direct Mount to Hose Reel D‐Series Blower
Submittal Sheets
- HRMO-1 - Specification
- HRMO-2 - Specification: Motor Driven HR 9000-TMTR (Tube Type)
- HRMO-3 - Overhead Exhaust Systems Suggestions/Tips Sizing & Selection
- HRMO-4 - Series 9000-MTR Exploded
- HRMO-5A - Motor Operated Hose Reel Series 9000-W-MTR
- HRMO-5B - Motor Operated Hose Reel Series 9000-W-TMTR
- HRMO-5C - Motor Operated Hose Reel Series 9000-W-TMTR
- HRMO-6 - Series 9000-MTR, Series 9000-W-MTR, 9000-W-TMTR Components
- HRMO-7 - Series 9000-MTR Views
- HRMO-8 - Series 9000-W-MTR Views
- HRMO-9 - Tube Motor, Chain Drive 9000-W-TMTR Views
- HRMO-10 - Hose Reels, Series 9000 9000-MTR & 9000-W-MTR, 9000-W-TMTR Mounting Positions
- HRMO-11 - Hose Reel Motor Assembly (Box Motor) SERIES - MTR
- HRMO-12 - Hose Reel Motor Drive Series 9000-MTR Wiring Information
- HRMO-13 - 220-Volt Single Phase Wiring Diagram
- HRMO-14 - 2-BUTTON UP-DOWN PENDULUM 2-BUTTON WALL/COLUMN MOUNT
- HRMO-17 - Motor Operated Hose Reel Remote Control Series - 9000-MTR/9000-TMTR
- HRMO-15 - 4-BUTTON HANGING PENDULUM, 4-BUTTON WALL/COLUMN MOUNT & WIRING DIAGRAMS
- HRMO-16 - Tube Motor Wiring Information 9000-W-TMTR
- HRMO-17 - Motor Operated Hose Reel Remote Control Series - 9000-MTR/9000-TMTR
- HRMO-18 - 9000-MTR, 9000-W, & 9000 Series Hose Reel - Direct Mount Fan (Series DMHR)
- HRMO-19 - Direct Drive Fans Series DMHR
- HRMO-20 - Direct Drive Pressure Blower - With Wall/Column Bracket - Series D
- HRMO-21 - D Series Blower Performance
- HRMO-22 - Optional: Fan On/Off Switch for Mounting to Hose Reels
- HRMO-23 - Optional: Fan On/Off Switch for Mounting to Hose Reels
- HRMO-35 - L Series Motor Hose Reel Widened, Tube Type Motor, 4000 Series Hose, 9000-L-TMTR
- HRMO-36 - 9000-DMPR Hose Reel, Mechanical Damper
- HS-6 - Series 4000/5000 Exhaust Extraction Hose Pressure Drop Chart
