Features

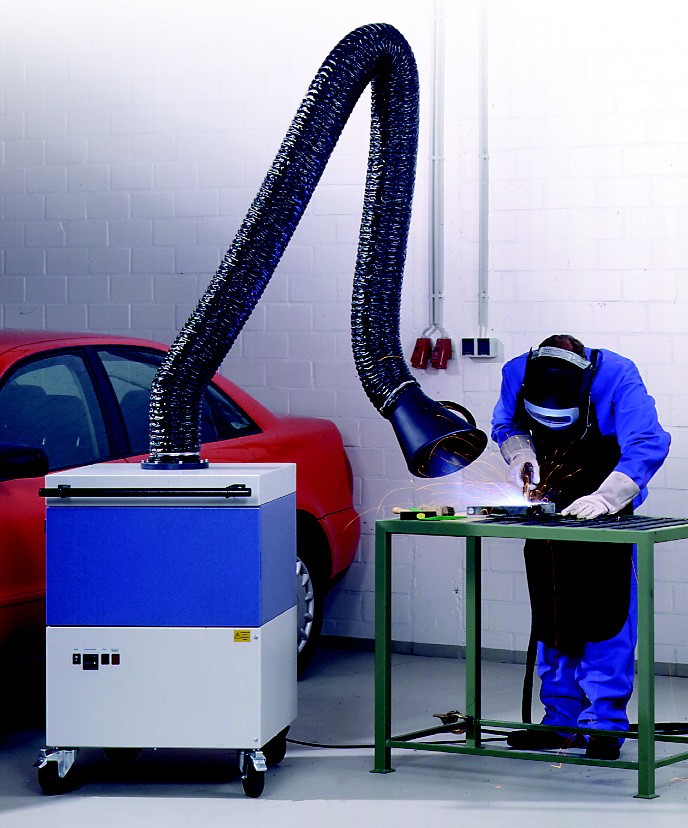

The PHS features a portable design (26″x26″), while maintaining a high CFM. When floor space is at a premium and performance is in demand, the PHS meets the challenge!
The system is shipped assembled and ready to use. This PHS is available with a 7″ or 10″ arm, or with out an arm or fixed station or hard duct.

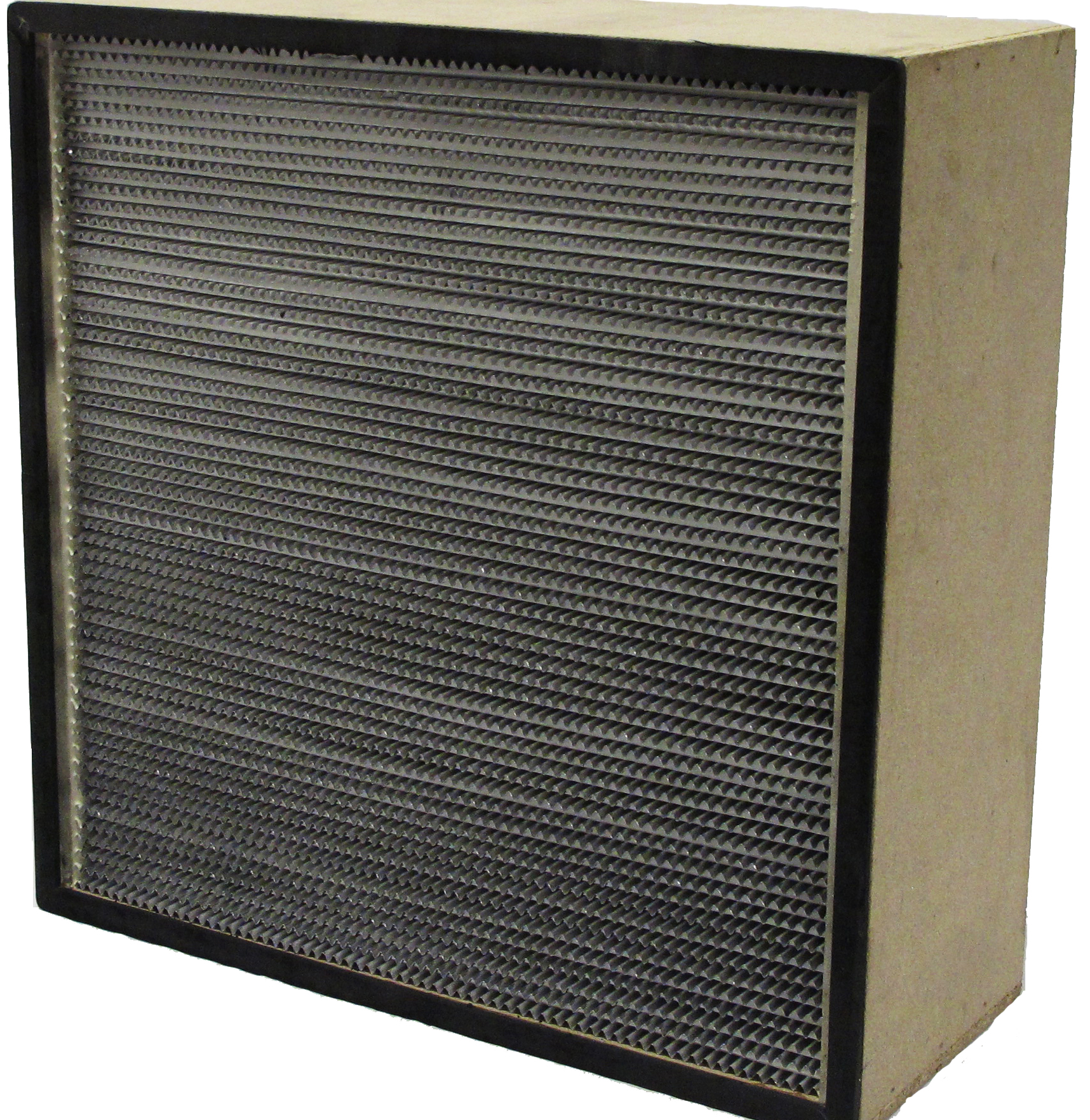

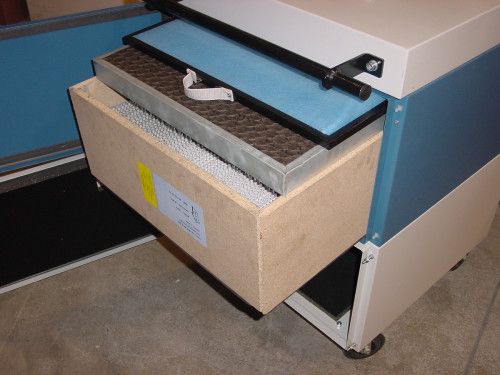

The PHS is supplied with a 24″x24″x2″ poly pre-filter (#1) and with a 24″x24″x12″ HEPA filter (#3). The HEPA is a 99.97% filter. An optional 24″x24″x2″ carbon filter is also available (#2). Accessing the filters is easy with a hinged door on the front and pull-out trays.
