ALU Rail Hose Reel

Contact to Purchase

Features

MONOXIRAIL Systems, with Hose Reels, are one of the most versatile indoor source capture solutions on the market today.

The rail combined with the hose reel creates a free and open work environment within numerous applications. The ALU models are geared toward higher air volumes and larger equipment.

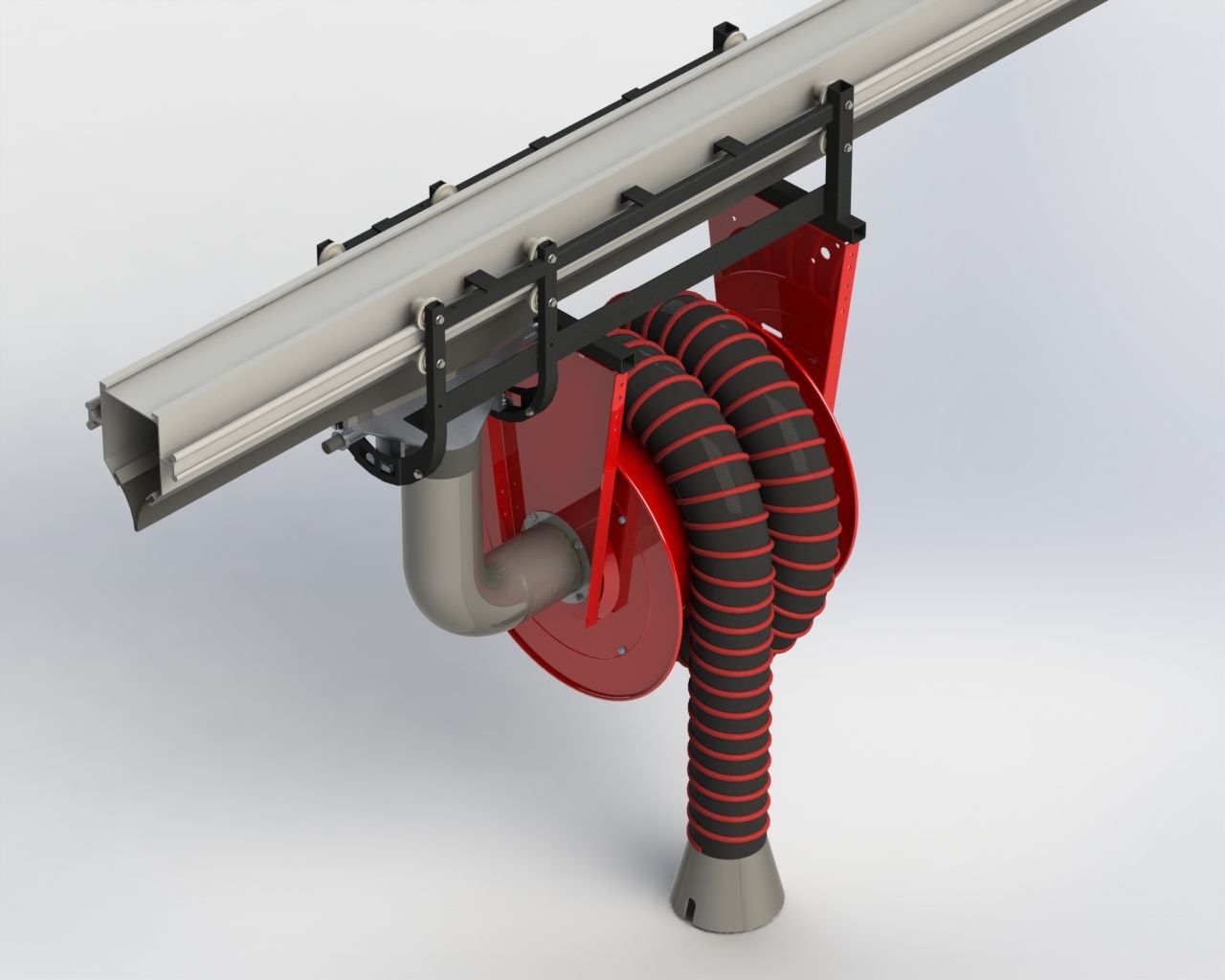

ALU150
Product Overview: Aluminum extruded extraction rail with sealing lips and mounting profiles to carry movable extraction trolleys. The extraction rail can be used with arms, hose reels, and fully flexible hose systems. The ALU modular concept caters for a wide range of applications and workplace environments. Straight-forward assembly, robust design with low pressure losses. Specification includes all necessary seals, clips, and brackets.

Length: As Required
Channel cross-section: 47 in² / equivalent pipe dia. 7 in.
Material: Extruded Aluminum
Weight: 26 lb./ft.
Operating Temperature: 302° F (150° C)

ALU250
Product Overview: Aluminum extruded extraction rail with sealing lips and mounting profiles to carry movable extraction trolleys. The 250’s larger cross section allows for higher air volume. The extraction rail can be used with arms, hose reels, and fully flexible hose systems. The ALU modular concept caters for a wide range of applications and workplace environments. Straight-forward assembly, robust design, with low pressure losses. Specification includes all necessary seals, clips, and brackets.

Length: As Required
Channel cross-section: 70 in² / equivalent pipe dia. 9 in.
Material: Extruded Aluminum
Weight: 44 lb./ft.
Operating Temperature: 302° F (150° C)


Submittal Sheets

Design Worksheets
